The 1500 Series TerrainCut™ Front Mowers are powered by liquid-cooled, 3-cylinder diesel engines.

These engines feature low levels of exhaust and emissions, reduced noise levels, and excellent fuel economy. They also meet the necessary Environmental Protection Agency (EPA) Tier 4 emissions requirements.

The 1570, 1575, 1580, and 1585 models are biodiesel compatible from the factory up to B20. The 1550 model requires an optional kit to be compatible with B20 biodiesel fuel.

Key features of the engine include:

• Economical cast-in block cylinder design for good cooling and long life
  ‍
• Indirect fuel injection (1550)

• Direct fuel injection (1570, 1575, 1580, 1585)

- Injects fuel directly on top of pistons for more efficient combustion

- Delivers more horsepower per gallon of fuel

- Improves starting

- Develops more horsepower per gallon of fuel and improves starting

• Aluminum alloy pistons with built-in steel struts are lightweight to reduce connection rod bearing loads and provide good heat transfer characteristics
  ‍
• Design permits tighter tolerances and neutralizes expansion of the piston, thereby reducing blow-by gas and noise from the piston slap
  ‍
• Higher top rings on the piston and a thinner head gasket greatly reduce the volume of unburned waste gases and increase combustion efficiency
  ‍
• Timing gears and injector drive gears utilize helical profile gears to help lower engine noise; gear teeth have a newly designed roll-off profile, giving almost no clash, no noise, and no backlash
  ‍
• Fuel filter with replaceable element
  ‍
• Full-pressure intake manifold provides quick starts in temperatures down to 0°F (-18°C) (optional engine coolant heater attachment assists starting under more extreme conditions)
  ‍
• Auto-bleed fuel system – there is no need to prime the system if the tractor runs out of fuel; the system self-primes the injection pump, lines, and injectors, providing fast fuel recovery
  ‍
• Key start and shutoff eliminates fuel shut-off knob; electric solenoid shuts fuel supply off immediately when key is turned off
  ‍
• See-through coolant recovery tank permits operator to check coolant level without removing radiator cap
  ‍
• Enclosed engine compartment to keep out debris and lower sound levels
  ‍
• Sealed radiator compartment to keep trash and debris on outside of hood
  ‍
• Excellent torque for plenty of lugging power when operating in tough mowing conditions
  ‍
• Full-pressure lubrication for positive lubrication, even when operating on slopes
  ‍
• Dual-element, dry-type, replaceable air cleaner completely sealed for effective cleaning

- 90 percent to 95 percent of dirt ejected before it reaches the paper element

• Secondary safety element for additional filtering
  ‍
• Progressive-type air restriction indicator to let operator know when the filter needs servicing
  ‍
• Automotive-type alternator for plenty of charge to the battery and power for accessories

- 75 amp for open-station models

- 95 amp for ComfortCab models

• Automatic initiation of air heater for easier cold-weather starting
  ‍
• Automotive-sensing system tells operator when engine is ready to start

FUEL TANK IS LARGE CAPACITY WITH CONVENIENT GAUGE FOR MAXIMUM UPTIME

Fuel tank features:

• 16-U.S. gal. (60.6-L) capacity provides a 10-hour run time.
• Top draw provides clean fuel.
• Fuel indicator is conveniently located.

Since 1998 the John Deere 7-Iron™ mower deck has demonstrated commercial quality, performance, and durability. The 7-Iron PRO, Fastback™, and V-Flex mower decks deliver an even higher-quality cut in even more diverse conditions.

TerrainCut Commercial Mower Compatibility

Rear weights (R66949) are required based on machine configuration. Must also order TCB10303, rear weight mounting bracket.

*Mower deck offset for trimming capability. Vehicle track width is 2 in. (5.1 cm) wider on the discharge side of deck. This may cause the tire to drive over uncut grass on discharge side of deck.

NOTE: These mower decks will not retrofit to F900 Series or F1145 Front Mowers.

ROTATE FOR SERVICE (RFS™)

Rotate for Service (RFS) feature provides access for cleaning and maintenance of the mower decks:

• The rotation angle will vary depending on deck size and power unit tire size.
• No tools are required to access belts.
• The underside of the mower deck is easy to access.
• Easy on/off design simplifies installing and removing mower decks.
• Top, greaseable spindles can be accessed without removing belt covers.

The Rotate for Service position also reduces the length of the machine for trailering.

Certification

TerrainCut Front Mowers comply with ANSI B71.4 safety certification.

HEAVY-DUTY BLADE SPINDLES

The mower spindle housings are made of ductile cast iron, except for the 72-in. (183-cm) 7-Iron V-Flex Side-Discharge Mower Deck, which has an aluminum center spindle housing and cast-iron gearboxes to drive the outer blades.

Key benefits of ductile cast-iron spindle housings:

• Ductile cast-iron material provides superior impact strength.
• Gusseted design puts reinforcement where it is needed.
• Strength of cast iron protects against damage from blade impacts.
• Grease fitting is mounted at the top for easy access.
• Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing.
• The 8-in. (20.3-cm) diameter housing distributes loads and impacts to minimize deck-shell damage.
• Spindle allows ability to be rebuilt.

NOTE: The 72-in. (183-cm) 7-Iron V-Flex Side-Discharge Mower Deck has an aluminum center spindle housing. The outside blades are driven by cast-iron gearboxes.

62-IN. (157-CM) FASTBACK MOWER DECK

The 62-in. (157-cm) Fastback rear-discharge mower is ideally suited for:

Areas where people are present

• Schools
• Parks
• Playgrounds
• Traffic areas (city boulevards, roadsides, etc.)

Conditions and applications:

• Areas with long grass and weeds
• Areas where customer is not as concerned about having a wide dispersal of grass (park areas, roadsides, etc.)

Government bids that specify a rear discharge mower.

Key features of the 62-in. (157-cm) Rear-Discharge Mower Deck include:

• Mower deck is constructed of 7-gauge, 0.179-in. (4.6-mm) steel for the strength to stand up to the demanding use of commercial and municipal mowing applications.
  ‍
• Blade spindle housings are made of ductile cast iron.

- Gusseted design puts reinforcement where it is needed.

• Deck is constructed with a patented baffling system that reduces clumping and windrowing and
  produces a finished appearance that competitive rear-discharge mowers cannot match.
  ‍
• The belt-drive system has an easy-to-adjust tension device.

- By using a spring system, the risk for over tensioning is eliminated, ensuring a long belt life and excellent performance during the season.

• For easy service and maintenance, the deck can be rotated into the vertical locked service position.
  ‍
• Deep-deck design increases airflow so more material can be processed.
  ‍
• Operator can trim with either side.

- Dual side trimming increases operator productivity.

• 1-in. to 6-in. (2.5-cm to 15.2-cm) cutting heights, in 0.5-in. (1.3-cm) increments, allow the operator to match all mowing conditions.
  ‍
• Gauge wheels, rollers, or side-mounted skid shoes lift the deck over uneven surfaces for a well-groomed appearance.
  ‍
• Double-captured anti-scalp wheels provide increased durability.
  ‍
• Easy lift and lock system for service purposes.
  ‍
• Standard semi-pneumatic caster tires will not go flat when punctured.
  ‍
• Spindles can be greased without removing belt shields.
  ‍
• 1-in. (2.5-cm) cold-forged spindles are strong for long life.

- Heat-treated to provide additional strength

• Certified to European (CE) standards

  ‍

72-IN. (183-CM) FASTBACK MOWER DECK

The 72-in. (183-cm) rear-discharge mower deck is ideally suited for:

Areas where people are present

• Schools
• Parks
• Playgrounds
• Traffic areas (city boulevards, roadsides, etc.)

Conditions and applications:

• Areas with long grass and weeds
• Areas where customer is not as concerned about having a wide dispersal of grass (park areas, roadsides, etc.)

Government bids that specify a rear discharge mower.

Key features of the 72-in. (183-cm) Rear-Discharge Mower Deck include:

• Mower deck is constructed of 7-gauge, 0.179-in. (4.6-mm) steel for the strength to stand up to the demanding use of commercial and municipal mowing applications.
  ‍
• Blade spindle housings are made of ductile cast iron.

- Gusseted design puts reinforcement where it is needed.

• Deck is constructed with a patented baffling system that reduces clumping and windrowing and
  produces a finished appearance that competitive rear-discharge mowers cannot match.
  ‍
• The belt-drive system has an easy-to-adjust tension device.

- By using a spring system, the risk for over tensioning is eliminated, ensuring a long belt life and excellent performance during the season.

• For easy service and maintenance, the deck can be rotated into the vertical locked service position.
• Deep-deck design increases airflow so more material can be processed.
• Operator can trim with either side.
• Dual side trimming increases operator productivity.
• 1-in. to 6-in. (2.5-cm to 15.2-cm) cutting heights, in 0.5-in. (1.3-cm) increments, allow the operator to match all mowing conditions.
• Gauge wheels, rollers, or side-mounted skid shoes lift the deck over uneven surfaces for a well-groomed appearance.
• Double-captured anti-scalp wheels provide increased durability.
• Easy lift and lock system for service purposes.
• Standard semi-pneumatic caster tires will not go flat when punctured.
• Spindles can be greased without removing belt shields.
• 1-in. (2.5-cm) cold-forged spindles are strong for long life.
• Heat-treated to provide additional strength
• Certified to European (CE) standards

‍

72-IN. (183-CM) 7-IRON V-FLEX COMMERCIAL SIDE DISCHARGE MOWER DECK

The 72-in. (183-cm) 7-Iron V-Flex Mower Deck is suitable for those who need a rotary deck capable of following the undulations and mounding in rough or uneven areas:

• Golf courses
• Sports facilities
• Parks and recreation facilities
• Municipalities

The V-Flex deck is constructed of 7-gauge, 0.179-in. (4.6-mm) steel:

• Added strength to stand up to the demanding uses on the golf course.

The deck has a patented vertical belt drive system, which allows for the deck to articulate 20 degrees above and below center. This design also allows for belts to stay clean and prevents the belt from stretching and twisting when flexing.

60-IN. (152-CM) 7-IRON PRO SIDE-DISCHARGE MOWER DECK

Features include:

• Blade tip speed of 18,000 fpm (5486 m/min) for more blade strikes per inch mowed.
• Redesigned front baffle manages airflow and controls clippings better.
• Blade spindle housings are made of ductile cast iron
• Gusseted design puts reinforcement where it is needed.
• Spindle pocket reinforcement gives even greater structural durability.
• Adjustable anti-scalp wheels help smooth out the mowing job.
• Standard semi-pneumatic caster tires will not go flat from punctures.

The mower is designed to provide exceptional cut quality at higher travel speeds:

• The mower deck is stamped from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.

- Provides precision components and long deck life

- Single piece of steel means no welds to break

- Provides a smooth underside, without corners, reducing material buildup

• 0.75-in. (1.9-cm) solid steel bar is welded to mower deck perimeter for added strength.
• The rounded corners of the stamped deck help distribute impact stress to reduce the potential of damage when the mower contacts trees, rocks, curbs, and other fixed obstacles.
• A deep-deck design of 5.5-in. (14-cm) delivers excellent airflow so material can be processed quickly and efficiently.
• 1-in. to 6-in. (2.5-cm to 12.7-cm) cutting heights, in 0.5-in. (1.3-cm) increments, allow the operator to match all mowing conditions.

Unique baffling system allows grass to stand up before being cut, producing a uniform length and appearance:

• Baffling system eliminates clumping, blowout, and windrowing.
• Wide discharge opening provides even clipping dispersal for an excellent, finished appearance in all conditions.

72-IN. (152-CM) 7-IRON PRO SIDE-DISCHARGE MOWER DECK

Features include:

• Blade tip speed of 18,000 fpm (5486 m/min) for more blade strikes per inch mowed.
• Redesigned front baffle manages airflow and controls clippings better.
• Spindle pocket reinforcement gives even greater structural durability.
• Blade spindle housings are made of ductile cast iron.
• Gusseted design puts reinforcement where it is needed.
• Adjustable anti-scalp wheels help smooth out the mowing job.
• Standard semi-pneumatic caster tires will not go flat from punctures.

The mower is designed to provide exceptional cut quality at higher travel speeds:

• The mower deck is stamped from 7-gague, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.

- Provides precision components and long deck life

- Single piece of steel means no welds to break

- Provides a smooth underside, without corners, reducing material buildup

• 0.75-in. (1.9-cm) solid steel bar is welded to mower deck perimeter for added strength.
• The rounded corners of the stamped deck help distribute impact stress to reduce the potential of damage when the mower contacts trees, rocks, curbs, and other fixed obstacles.
• A deep-deck design of 5.5-in. (14-cm) delivers excellent airflow so material can be processed quickly and efficiently.
• 1-in. to 6-in. (2.5-cm to 12.7-cm) cutting heights, in 0.5-in. (1.3-cm) increments, allow the operator to match all mowing conditions.

Unique baffling system allows grass to stand up before being cut, producing a uniform length and appearance:

• Baffling system eliminates clumping, blowout, and windrowing.
• Wide discharge opening provides even clipping dispersal for an excellent, finished appearance in all conditions.

PTO SHAFT DRIVE IS EASY TO ACCESS FOR QUICK-CHANGE OF EQUIPMENT

Live, independent power take-off (PTO) powers a mower deck, rotary broom, or two-stage snow blower:

• PTO can be engaged or disengaged on the go for greater productivity.
• Hydraulic PTO clutch has delay relief valve for soft engagement.
• Wet clutch design provides long life.
• PTO is easily accessible.

TIRES ARE MATCHED TO THE MACHINE SIZE AND MOWER WIDTHS

1550, 1570, 1575 TIRES

Standard drive tires:

• 23x10.5-12 or 23x8.5-12 (1550, 1570)
• 23x10.5-12 (1575)

Available steering tires: 18x8.5-10 (4WD) or 18x8.5-8 (2WD)

1580, 1585 TIRES

Standard drive tires: 26x12-12, 6 PR drive tires (1580, 1585)

Standard steering tires: 20x10.00-10, 6 PR steering tires (1580, 1585)

OPTIONAL MULCHING KITS ADD VERSATILITY TO THE MOWER DECKS

Kits are available to convert the 60-in. (152-cm) and 72-in. (183-cm) 7-Iron™ PRO Side-Discharge Mower Decks into mulching decks for use in grass and leaves.

The mulch kits include mulching blades, baffles, end covers, and attaching hardware.

Maneuverability:

• Turn radius of 13 in. (33 cm)
• Uncut circle of 28 in. (71.1 cm) with a 72-in. (183-cm) 7-Iron™ PRO mower deck
• Deck offset and pulled rearward
• Tail-follows-the-trail trimming capability with 72-in. (183-cm) side-discharge mower deck
• Steered wheels (tail) stay within the path (trail) cut by the mower deck, allowing maneuverability without the rear of the machine contacting mowing obstacles

Hydrostatic power steering provides the following benefits:

• Makes it easy to turn the unit for less operator fatigue
• Allows quick turns - two turns lock to lock - for excellent productivity

The steering console offers the following:

• Throttle
• Key switch
• Headlight switch
• T4 display for monitoring performance (1570, 1575, 1580, 1585)

Console information/warning lights include the following:

• Hour meter
• Battery discharge light
• Engine oil pressure
• Engine coolant temperature
• Hydraulic oil over temperature
• Air preheater
• Lights
• Power take-off (PTO) operation indication

Two-pedal foot control:

• Allows the operator to select speed and direction with just the touch of a toe
• Keeps both hands free for steering and operating controls

Master stop brake (parking brake):

• Provides stopping power to both drive wheels
• Disengages the power take-off (PTO)
• Disengages the optional cruise control
• Used also for a parking brake

Individual turn-assist brakes:

• Provides additional traction when operating on hillsides
• Ideal for tight trimming situations
• Works in conjunction with hydrostatic foot controls to stop or slow the unit for turns

Differential lock:

• Locks both front drive wheels together for added traction
• Easily engaged with the left foot

The 4WD control lever is standard on 1575, 1580, and 1585; it is a factory-installed option on the 1550 and 1570.

The 4WD control lever:

• Allows the operator to select between on-demand or full-time 4WD on 1550, 1570, and 1575 models
• Allows the operator to select between on-demand or full-time 4WD and full-time two-wheel drive (2WD) on 1580 and 1585 models

Electronic cruise control (optional):

• Beneficial when mowing open areas or when transporting

The lift-control lever is conveniently located within easy reach of the operator's right hand.

A two-speed transaxle shift lever is standard on 1580 and 1585.

SAFETY STARTING SYSTEM HELPS PROTECT THE OPERATOR AND OTHERS

TerrainCut™ Front Mowers have an operator-presence system.

To start the engine the following conditions must be met:

• Master brake must be depressed or the parking brake locked; the hydrostatic foot controls will then be in the neutral position.
• PTO must be disengaged
• Ignition key must be used.

In addition, once the engine is running, an interlock automatically shuts the engine and PTO off if the operator leaves the seat. To keep the engine running, the operator must disengage the PTO and set the parking brake before dismounting.

TILT STEERING AND HEADLIGHTS ARE STANDARD EQUIPMENT TO REDUCE COST

The three-piece steering column provides the following:

• Easy access to the steering valve and electrical components
• Better fit-up and appearance
• Easy adjustment to accommodate all operators
• Standard 50-W halogen headlights

TILT STEERING

Tilt steering column allows the operator to adjust to the most comfortable position:

• Allows additional clearance for platform entry and exit
• Over 15 in. (38.1 cm) of travel
• Works in conjunction with the seat to accommodate all operators, regardless of size

CERTIFICATION ENSURES COMPLIANCE WITH SAFETY STANDARDS

TerrainCut Front Mowers comply with ANSI B71.4 2004 safety certification specification.

The ROPS complies with the U.S. Occupational Safety and Health Administration (OSHA) 1928.51 standard for rollover protection.

BRAKES AND DIFFERENTIAL LOCK ARE CONVENIENT TO USE FOR MAXIMUM PRODUCTIVITY

Wet-disk brakes are standard equipment:

• Provide positive stopping power and long life
• Require minimal adjustment
• Individual turn brakes are located on left side of platform

The differential lock is also included as standard equipment:

• Locks both front drive wheels together for extra traction, when needed
• Conveniently located pedal to allow the operator to engage the differential lock with the left foot while maintaining speed and direction (forward or reverse) with the right foot

12-V POWER OUTLET IS CONVENIENT TO USE

The 12-V power outlet can be used to recharge radios and cell phones, popular tools used by commercial cutters.

The outlet is conveniently located under the front of the seat.

The ComfortCab is standard equipment on the TerrainCut™ 1575 and 1585 Front Mowers. It is one of the most comfortable and easy-to-use cabs available anywhere. This premium cab was developed using extensive research and testing, and some of the most advanced design techniques available.

Cab vehicles are designed for operators who demand superior comfort and performance:

• Large-property owners
• Commercial operators
• Governmental agencies
• Producers

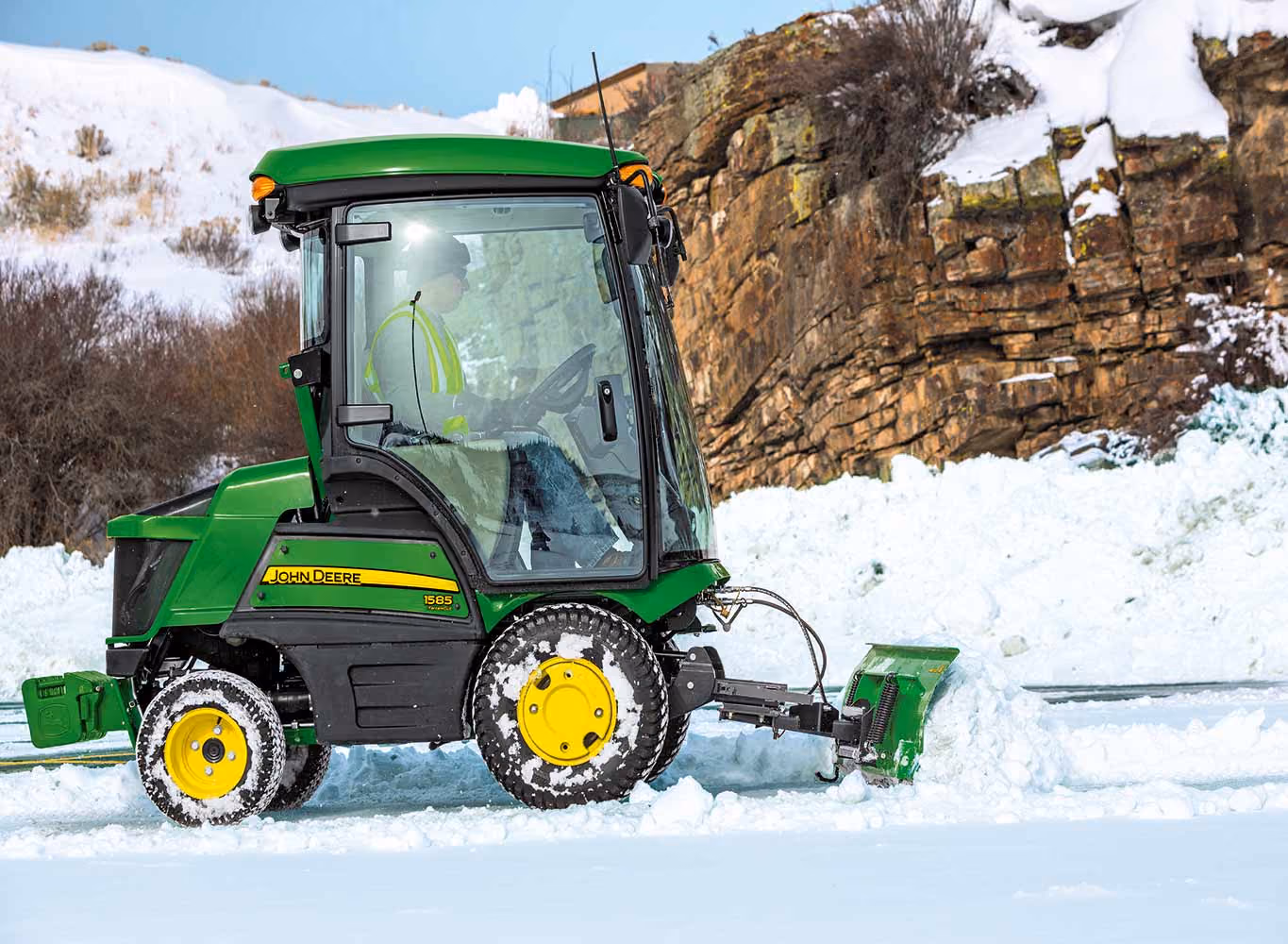

Whether mowing or doing other implement work (such as use of the snow blower, rotary broom, or front blade), the TerrainCut Front Mowers have the versatility and muscle to get the job done, all while protecting the operator from the elements.

DESIGN

Operators are sure to appreciate what this cab has to offer, beginning with a design that has visibility in mind. The cab is designed with robust mounting points integrated into the rollover protective structure (ROPS).

The spacious design and carefully laid-out interior provide a full 360 degrees of visibility:

• Operators enjoy an unobstructed view no matter what task is being performed.
• Operator fatigue caused by awkward bending is reduced, leading to increased overall productivity.
• The ample headroom and curved glass on all four sides provide a roomy interior and give operators a big-cab feel.

CLIMATE CONTROL SYSTEM

Operators are well-protected from the elements with a high-performance climate-control system providing heating and air conditioning:

• The climate-controlled cab makes any task more enjoyable, whether on a frigid winter day or a hot summer day.
• A standard high-efficiency clean-air filter reduces dust and allergen particles.

A high-quality climate-control system for maximum operator comfort is standard equipment with the ComfortCab on the 1575 and the 1585:

• Heater and air-conditioner controls are conveniently located in headliner.
• Vents in the roof are located on both sides of the operator.

COMFORTCAB FEATURES

Several features are integrated into the design of the cab that deliver superior operator comfort and visibility. These features include:

• Ultra-quiet interior with noise dampening foam floor mats
• Curved glass for 360-degree visibility and spacious interior
• Raised header bar for maximum front visibility
• Right-hand control center with the most frequently used controls at the operator's fingertips
• Tilt steering
• Removable floor
• In-base equipment, deluxe cloth seat with a retractable seat belt
• Standard armrests for additional operator comfort
• Inside rearview mirror for rear visibility
• Interior dome light for illumination in low-light conditions
• Standard sun visor to block unwanted sunlight
• Creature comforts like:
• Convenient cup holder
• 12-V power supply
• Integrated handle providing support for ingress and egress
• Lockable, push-button entry handles
• Left-side step for convenient ingress and egress (1585 only)

Optional comfort features include:

• Optional dual exterior rearview mirrors for added rear visibility
• Optional radio mount kit and a choice of field-installed stereos are available:

- Stereo with AM/FM, weatherband, SiriusXM® Satellite, and iPod® ready

- John Deere/Delco AM/FM stereo with single compact disc player, clock, front audio input jack for MP3 players, and weatherband

- Stereo with AM/FM, weatherband, SiriusXM Satellite, and iPod ready

STANDARD AND OPTIONAL CAB OPERATING FEATURES

The cab has been designed with many standard features that provide ease and convenience for the operator:

• Standard two-speed front windshield wiper to keep the front glass clear
• Dual roof-mounted forward work lights for optimum forward visibility at night
• Integrated warning lights/turn signals, protected from trees and branches
• Double-spool auxiliary hydraulic valve with forward-mounted couplers (1575 base code - 2443TC; 1585 base code - 2463TC)

The cab has been designed to easily accept accessories that improve operator comfort and performance:

• Pre-wired for optional accessories like a radio, rear work lights, and beacon light
• Dual roof-mounted rearward work lights for optimum rearward visibility at night

COMFORTCAB INCLUDES ROLLOVER PROTECTION FOR THE OPERATOR

The ComfortCab includes ROPS protection for the operator. A retractable seat belt is included as standard equipment.

SiriusXM is a trademark of Sirius XM Radio Inc.  iPod is a trademark of Apple Inc.

SEAT

A comfortable cloth seat is provided for the operator.

A deluxe cloth air-ride seat with retractable seat belt is in base equipment on cab models:

• An ergonomically sculpted seat cushion, lumbar, adjustable seat back, air suspension, and seat armrests are combined to provide excellent operator comfort and support.
• The operator can adjust suspension by increasing/decreasing pressure to place arrow in center of gauge for optimum comfort.
• Using a lever located under the seat, the seat is adjustable fore and aft for operator height.
• Retractable seat belts prevent belts from becoming tangled in the seat suspension and controls.

STANDARD LIGHTING

Optional lighting includes:

• Dual roof-mounted adjustable rear work lights
• Rotating beacon light

CAB SAFETY FEATURES

• ROPS - Certified to the highest industry standards for maximum operator protection
• Operator presence system
• Right-side emergency exit
• Tempered safety glass in case of breakage
• Roof-mounted warning lights/turn signals for road transport — two front and two rear
