OVERVIEW

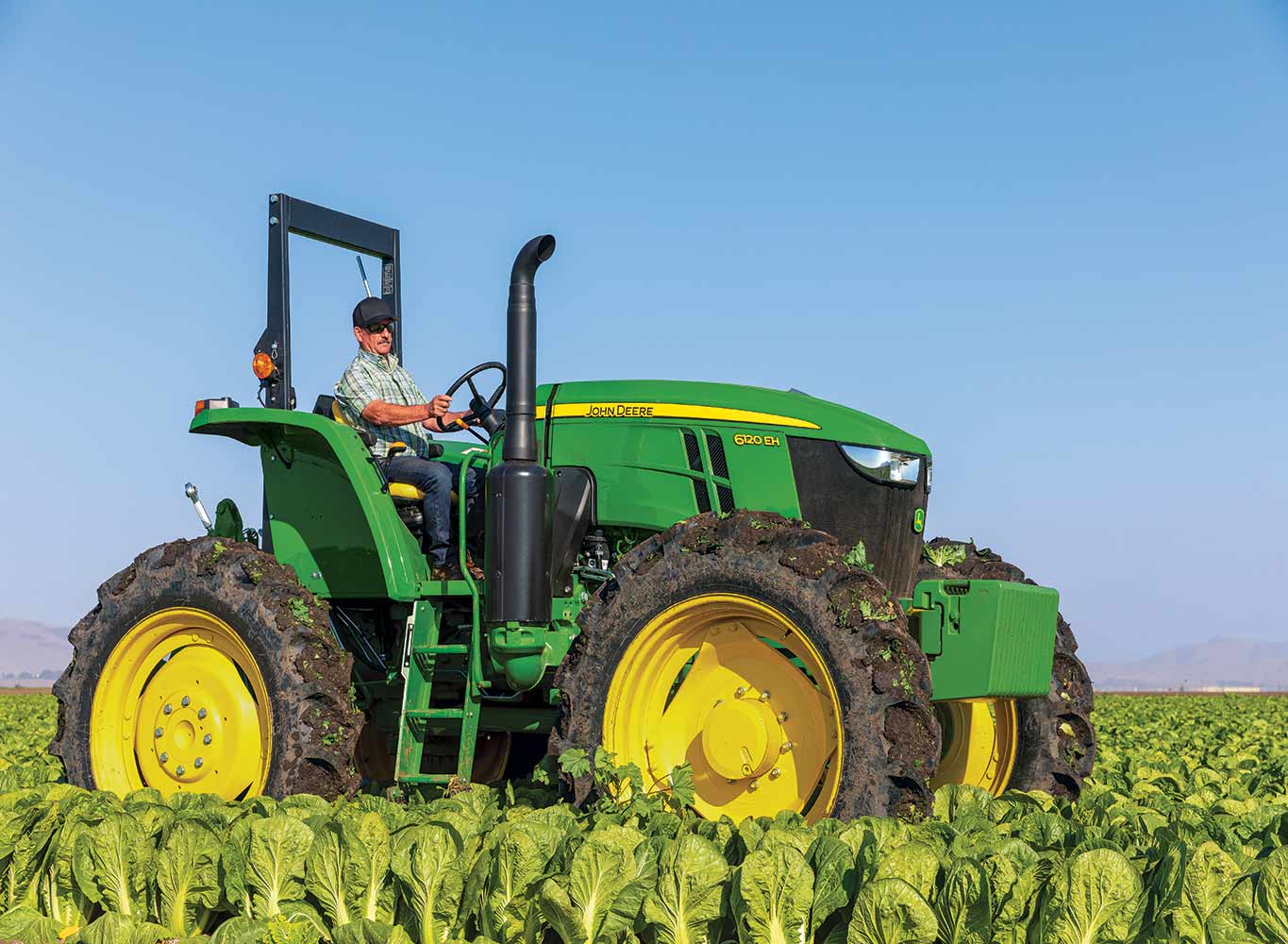

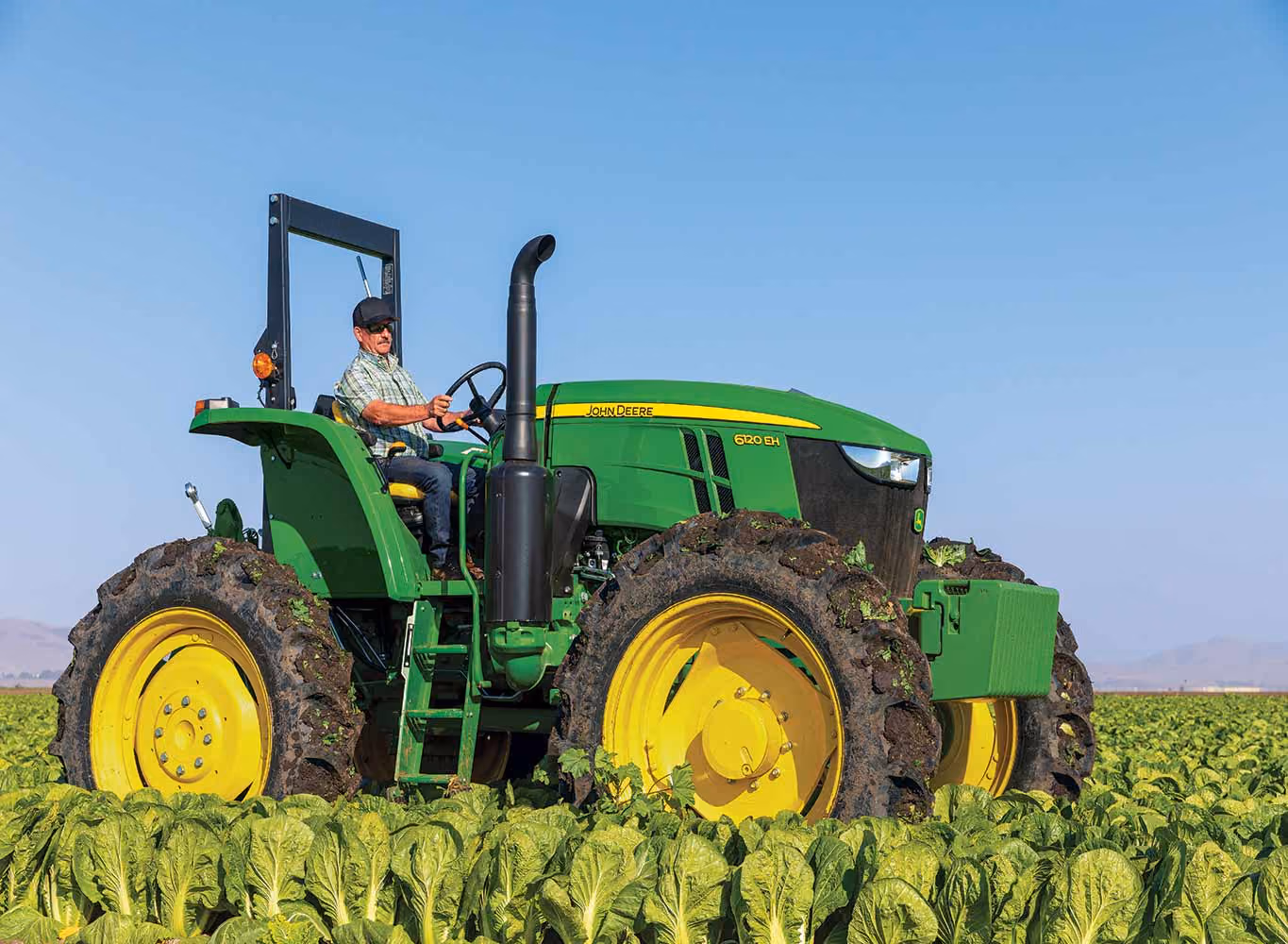

High-value crop applications require the ability to pull implements and perform harvesting operations over rows of varying widths without damaging the crop. The 6120EH High-Crop Tractor delivers 77-cm (30-in.) of drawbar  ground clearance to protect the plants and roots during applications such as cultivating, spraying, transplanting, and harvest.

BENEFITS

• Protection for crop plants and roots
• Additional crop clearance
• Adjustable tread for variable row spacing

ADDITIONAL DETAILS

The 6120EH Tractor offers front and rear radial tire options similar to the current 6E Tractor lineup. This tire design provides better ride quality, less compaction, and efficiency converting power to the ground. The tire options available on the 6120EH are further designed to protect high-value crop operations by providing drawbar ground clearance from 63.5 cm to 76.2 cm (25 in. to 30 in.).

Front and rear tire size options include:

• 340/85R38 R2 Radial
• 230/95R48 R1W Radial
• 320/90R46 R2 Radial
• 320/90R50 R1W Radial

The tire tread can be set for premium utilization in operations with a variety of crop row spacing. The drop axle features a flanged-type axle end that supports main tread setting options from 183 cm to 213 cm (72 in. to 84 in.). This design assists in keeping the inner area of the wheels clear to avoid damaging the crops.

The 6E Series PowrReverser transmissions deliver unmatched performance. Operators who utilize power take-off (PTO) implements during high-value crop operations like harvesting and spraying will appreciate the range of working speeds provided by the PowrReverser transmission.

The 12F/12R PowrReverser transmission with creeper provides an additional ultra-slow speed and is conveniently managed on the left-hand side of the operator seat. The creeper feature benefits specialty applications such as vegetable and fruit farms that require ultra-slow speeds. The creeper transmission allows for speeds as low as 0.23 km/h (0.14 mph) to accommodate hand harvesting operations.

Benefits:

• Provides ultra-slow speed
• Matched for human walking speeds
• Ideal use for harvesting machines


To further enhance visibility, the 6120EH Tractor has the option to include light-emitting diode (LED) lights. With LED lights on the front hood and cab of the tractor, performing tasks in variable operating conditions is made easier. Operators can do any operation, such as apply chemicals, in low light conditions.

Benefits:

• Visibility
• Productivity
• Comfort

A Category 2 3-point hitch on the 6E High-Crop Tractor provides the lift capacity and versatility needed throughout operations. Hooking up implements is convenient with telescoping draft links and adjustable sway bars. The external cylinders provide for a hitch lift capacity of 3702 kg (8161.5 lb) at lift point and 3420 kg (7540 lb) at 610 mm (24 in.) behind the hitch-lift balls throughout the lifting range. These features make the 6120EH Tractor able to perform in a variety of different applications.

• Pulling harvester wagons
• High value crop harvesting
• Spraying
• Transplanting
• Cultivating

‍
