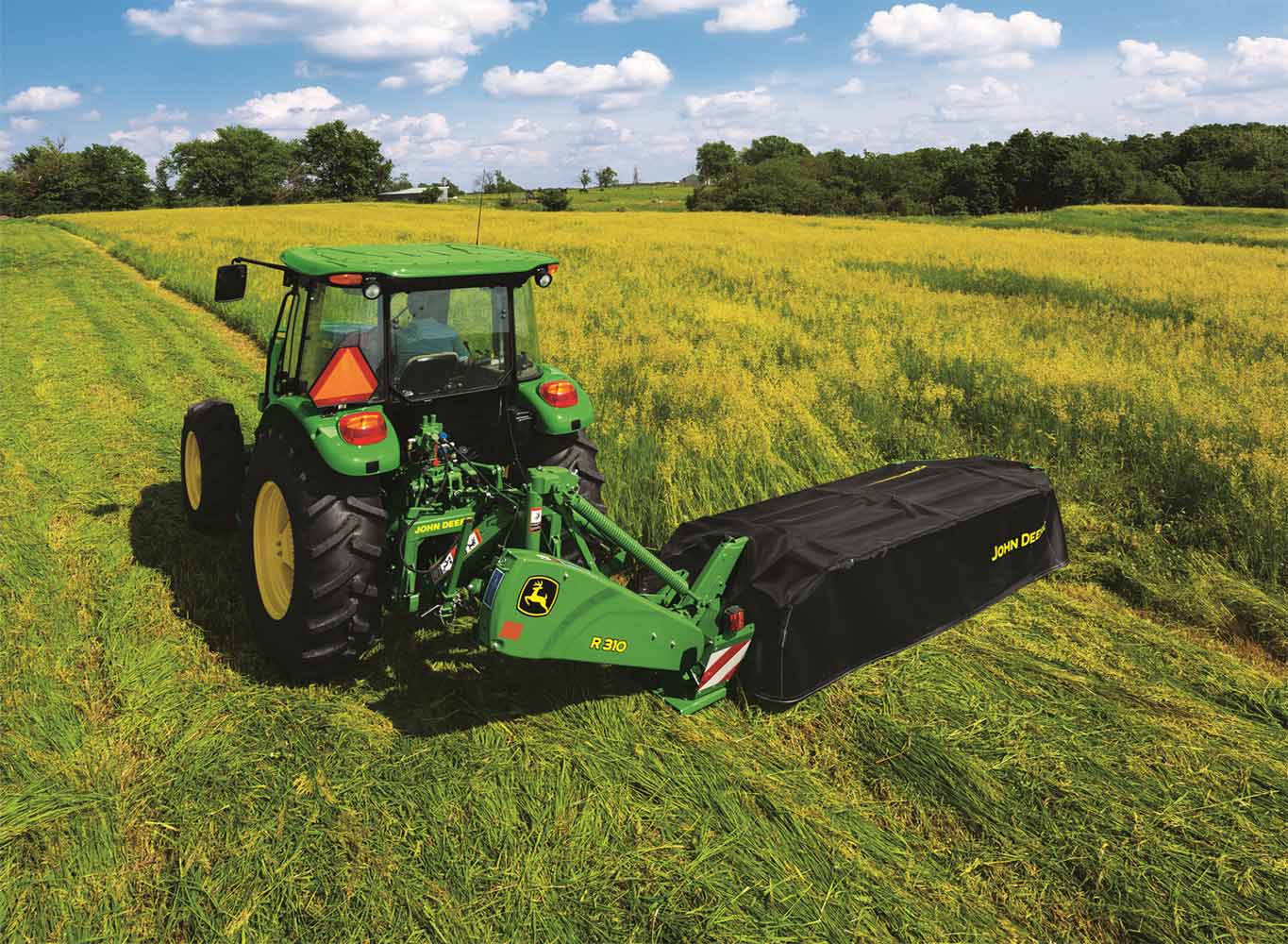

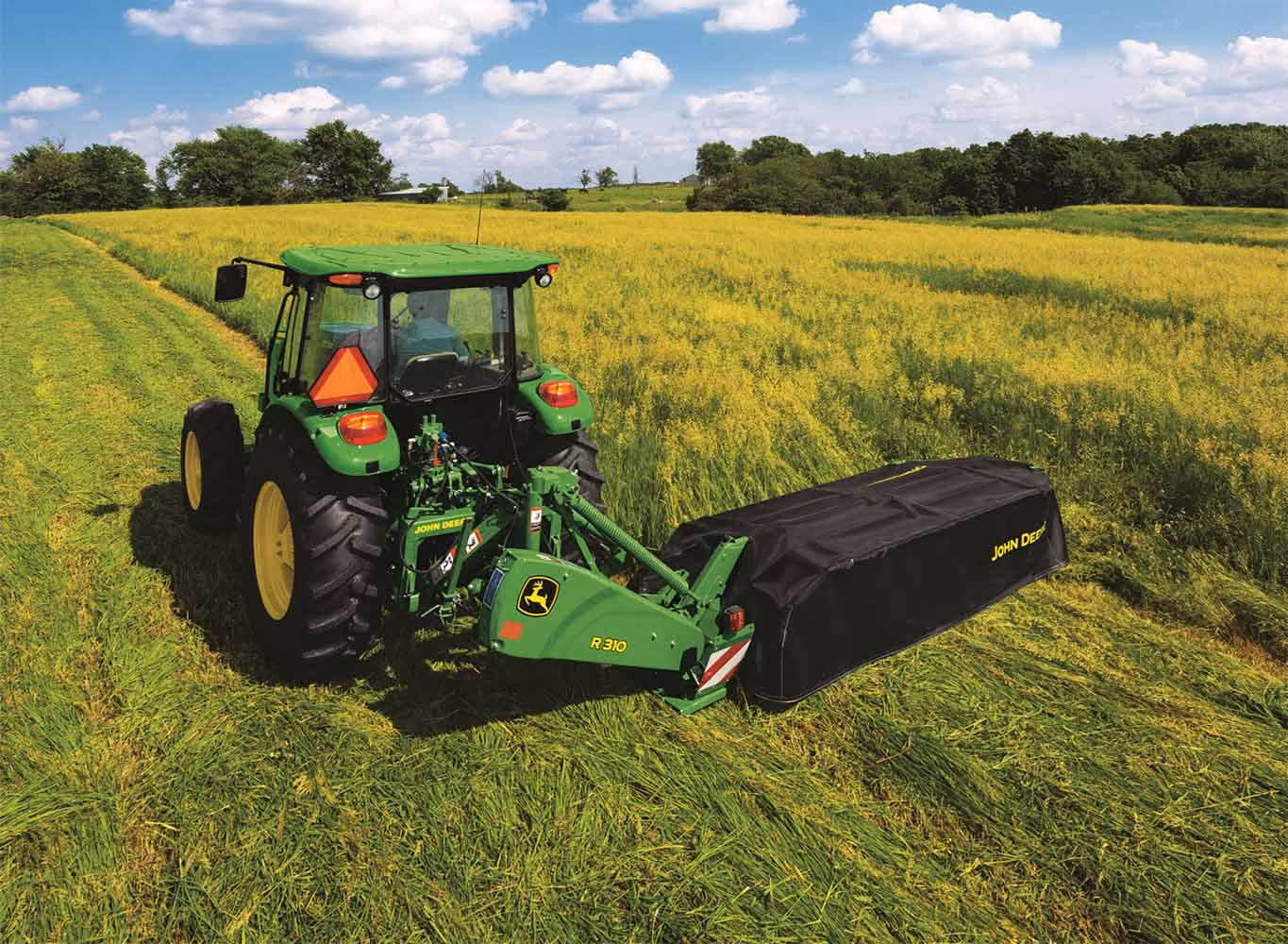

The R240, R280, and R310 Mowers attach to tractors with a Category 2 3-point hitch and all three models are quick-hitch compatible.

The R240, R280, and R310 models have a built-in parking lock that holds the 3-point arms up, making tractor hookup quick and easy.

Lower hitch pins can be adjusted left or right to match the mower offset for tractors with wider tire spacing.

The R240, R280, and R310 models have an offset range of 105 mm (4 in.).

Adjustable lower hitch pins and an optional longer hitch pin allow for use with tractors of various tire spacing.

Available through Parts: an optional long hitch pin increases mower offset to 200 mm (8 in.) for tractors with even wider tire spacing.

A heavy-duty driveline with overrunning clutch is standard equipment on R240, R280, and R310 Mowers.

All mowers are equipped with a shielded, pullback-collar, telescoping power take-off (PTO) driveline.

A multi-V-belt drive system transfers power from the gearbox to each rotary disc.

Power is transmitted to the rotary discs through fully enclosed gears running in oil for a quiet, smooth, reliable operation.

All models have a spring-loaded belt tensioner for easier belt adjustment. The belt tension automatically compensates for initial belt stretch, increasing belt life.

Rotating at 2986 rpm, the high-speed discs cut in the toughest conditions.

The low-profile cutterbar allows a close cut while maintaining a level cutterbar. The cutting height is controlled by adjusting the tilt of the cutterbar.

Each disc has two free-swinging knives:

• Easy to remove and replace
• Two cutting edges, doubling the use life

The cutterbar is protected from severe impact should an object be struck.

• Disc drive-shaft shears
• Reduces chance of internal damage to cutterbar
• Improves cutterbar reliability

Disc quills are easily removed from the top of the cutterbar for improved serviceability.

Each disc has two free-swinging knives:

• Easy to remove and replace
• Two cutting edges, doubling the use life
• Swings away to reduce possible damage if a solid object is struck
