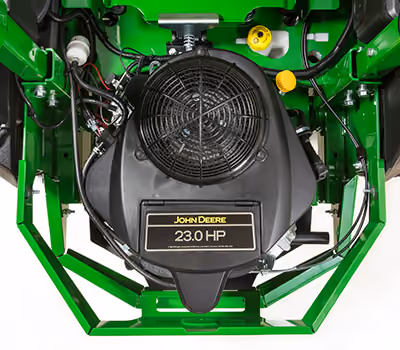

23-hp (17.2-kW) engine

Key engine features:

• 23 hp (17.2 kW) provides plenty of power.
• Large 44.3-cu in. (726-cc) displacement provides excellent torque.
• V-twin, 90-degree cylinder design allows for easy starts, excellent power and performance, and smooth operation.
• Engine model is FR691V.
• Many quality features are included.
• Cast-iron cylinder liners provide a long-wearing surface for longer engine life.
• Overhead V-valves allow the engine to breathe easily for excellent power and fuel economy.
• Automatic compression release provides easy starting.
• Internally vented carburetor maintains proper fuel mixture and minimizes emissions.
• Fuel shutoff solenoid stops excess fuel from entering the exhaust system and causing after bang upon shut down.

Engine oil check/fill and drain tube

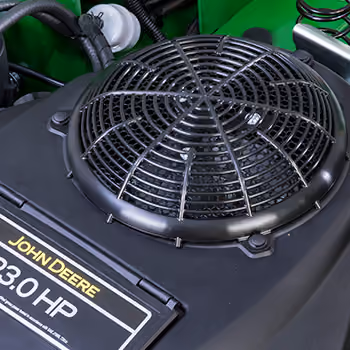

Engine debris chopper fan guard

• Full-pressure lubrication system provides plenty of oil to the engine’s moving parts to ensure reliable operation and long life:
• No-tools oil drain is convenient to use.
• A flexible drain tube can be placed above a drain pan to eliminate oil spills.
• Replaceable oil filter keeps the oil cleaner for a longer engine life and extends the time between oil changes.
• A rotating metal grass chopper screen helps keep the engine fins clean by filtering out debris and reducing the size of material that gets through so it will pass harmlessly past the engine fins.
• The guard keeps out large pieces of debris and provides protection from the rotating fan.

Easy service flip-up air filter cover

Replaceable air filter element

• The air filter system thoroughly cleans the engine intake air.
• Cover flips up for easy filter service.
• Electronic ignition contributes to fast starts.

Rear engine guard

• A rear engine guard protects the engine and provides additional vehicle strength and integrity.
• A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights.
• 20-amp capacity
• Regulated to keep the battery at a full charge without risk of overcharging

8-GAL. (30.3-L) FUEL CAPACITY FOR EXTENDED MOWING TIMES

Easy-to-see fuel sight gauge

Large fuel-fill opening and angled fuel filler neck

The large-capacity fuel tank is easy to fill, and a convenient fuel level gauge is provided:

• Holds 8-gal. (30.3-L) of fuel to reduce time needed for refills
• Easy to see how much fuel is in the tank by viewing the sight gauge when approaching from the front of the machine
• Large, 3.5-in. (8.9-cm) fuel fill diameter for easy filling and minimum chance of spills
• Fuel fill location low for easy filling, within easy reach of the operator

‍

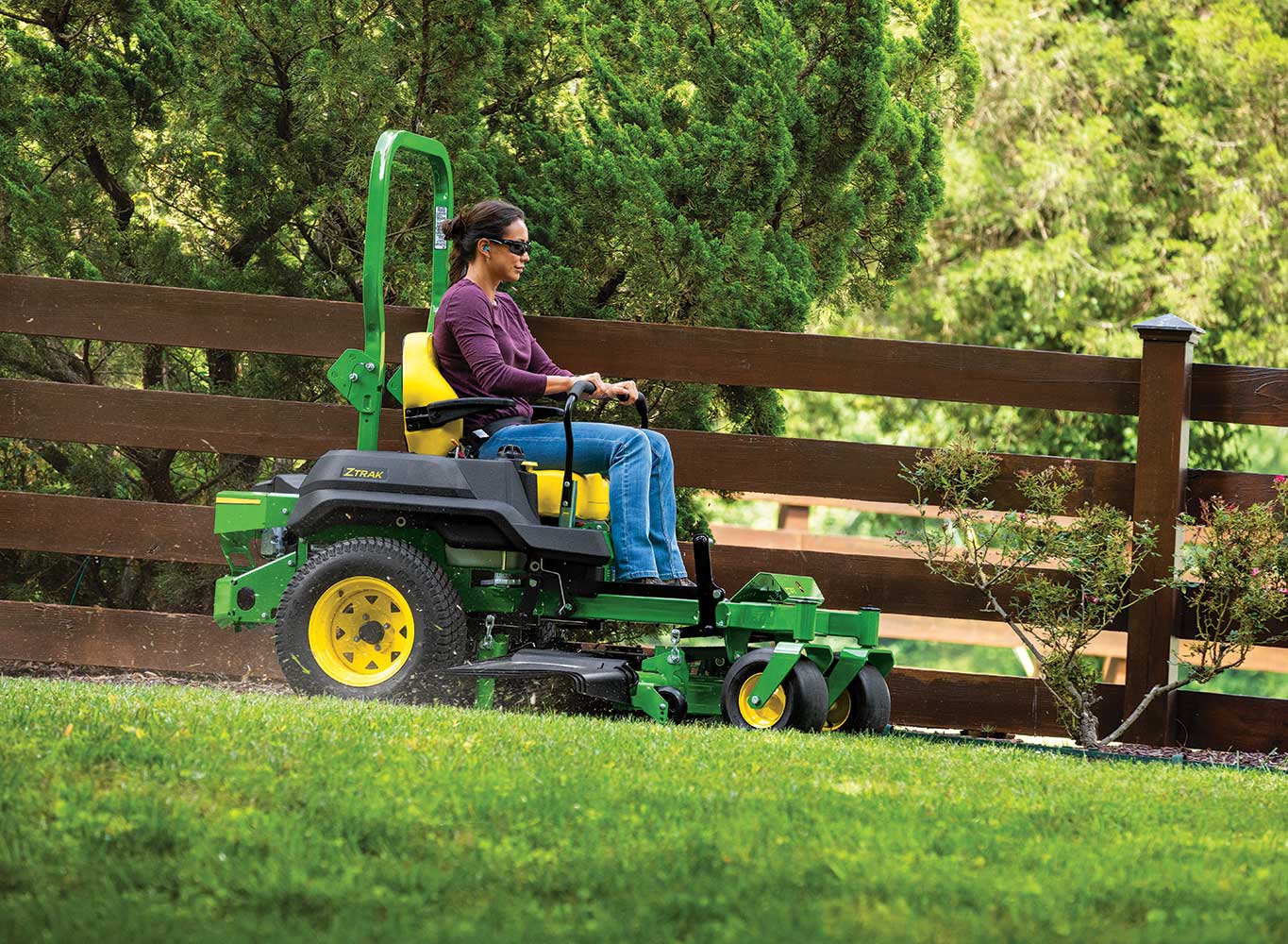

Each Z700 Series ZTrak™ Mower is equipped with either a 48-in. (122-cm), 54-in. (137-cm), or 60-in. (152-cm) HC PRO Mower Deck.

The mower deck has a deep-deck design:

• Constructed from heavy, 9-gauge, 0.15-in. (3.8-mm) steel.
• Minimizes the number of welds required
• Has a smooth underside for reduced material buildup
• Deep-deck design delivers excellent airflow, so large volumes of material can be processed quickly and efficiently.
• A wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
• A durable, plastic deflector spreads grass clippings evenly across the lawn, is hinged, and can be raised to minimize the storage space required.
• 1-in. (25.4-mm) cold-forged spindles are heat-treated for strength and are supported by ball bearings.
• Standard front rollers and two double-captured wheels provide a more even mowing job and reduce the chance of scalping.
• Adjustable for different mowing heights
• The front edge is raised above the blade plane to allow for even cutting of tall grass.
• Blade overlap is greater than many conventional decks for a clean cut.
• The mower can side-discharge, mulch, or collect material, except a Z740R equipped with Tweel tires is not compatible with a material collection system.

‍
